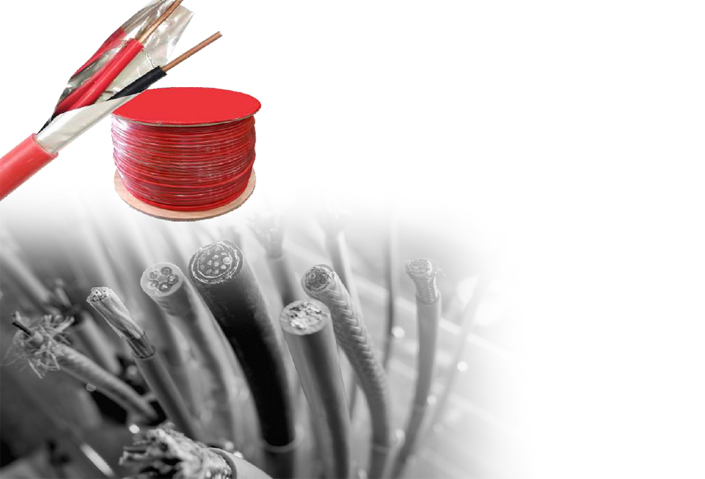

ALARM CABLE

FLEXIBLE & COPPER ARMOURED

Sr.No	PROPERTY	DATA
1	Make	SAFETAP
2	Size / No. of cores	2 core x 1.5 sqmm Armoured FRLS Cable
3	Standard	Generally Confirming to IS 1554 PT.1
4	Conductor / Class	Multi Stranded Annealed Bare Copper OR Equivalent Conductor Area / Class-5 / IS 8130
5	Core Insulation	Extruded type-A PVC Insulation IS 5831
6	Insulation Thickness	0.60 mm
7	Core Dia / Current Carring Capacity	2.6 MM/10 Amps
8	Colour of Core Insulation	red & black
9	Minimum no of twists / meter	2 Cores are Twisted Together To form a Pair with 8 / 10 twist per mtr.
10	Individual shielding	N.A.
11	Laying	N.A. (twistesd pair)
12	Overall shielding	N.A.
13	Inner Sheath / Thickness	Appl 0.30mm min.
14	Armoured / Unarmoured	Appl.
15	Armouring	0.90mm round g.i. wire
16	Outer Sheath / Thickness	Extruded FRLS PVC (1.0 Min) IS 5831
17	Colour of Outer Sheath / O.D	RED / 10.0 MM tolerance +/- 1.0 MM
18	Outer sheath compound FR grade PVC	FRLS
19	Fire resistance testing standards	IEC-332 Part-1
20	Temperature Index	>250°C
21	Oxygen Index	>=29%
22	Acid Gas generation	<=20%
23	Smoke density rating	<<60
24	DC Resistance at 20°C	>13.30 2 / KM (Max)
25	Printing On Cable	SAFETAP. 2C. X 1.5 SQ MM CU / PVC / Armrd. FRLS Cable. Generally confirming to IS 1554 PT.1, Voltage grade 1100v. YEAR. with sequential Mtr Marking at interval of 1 mtr
